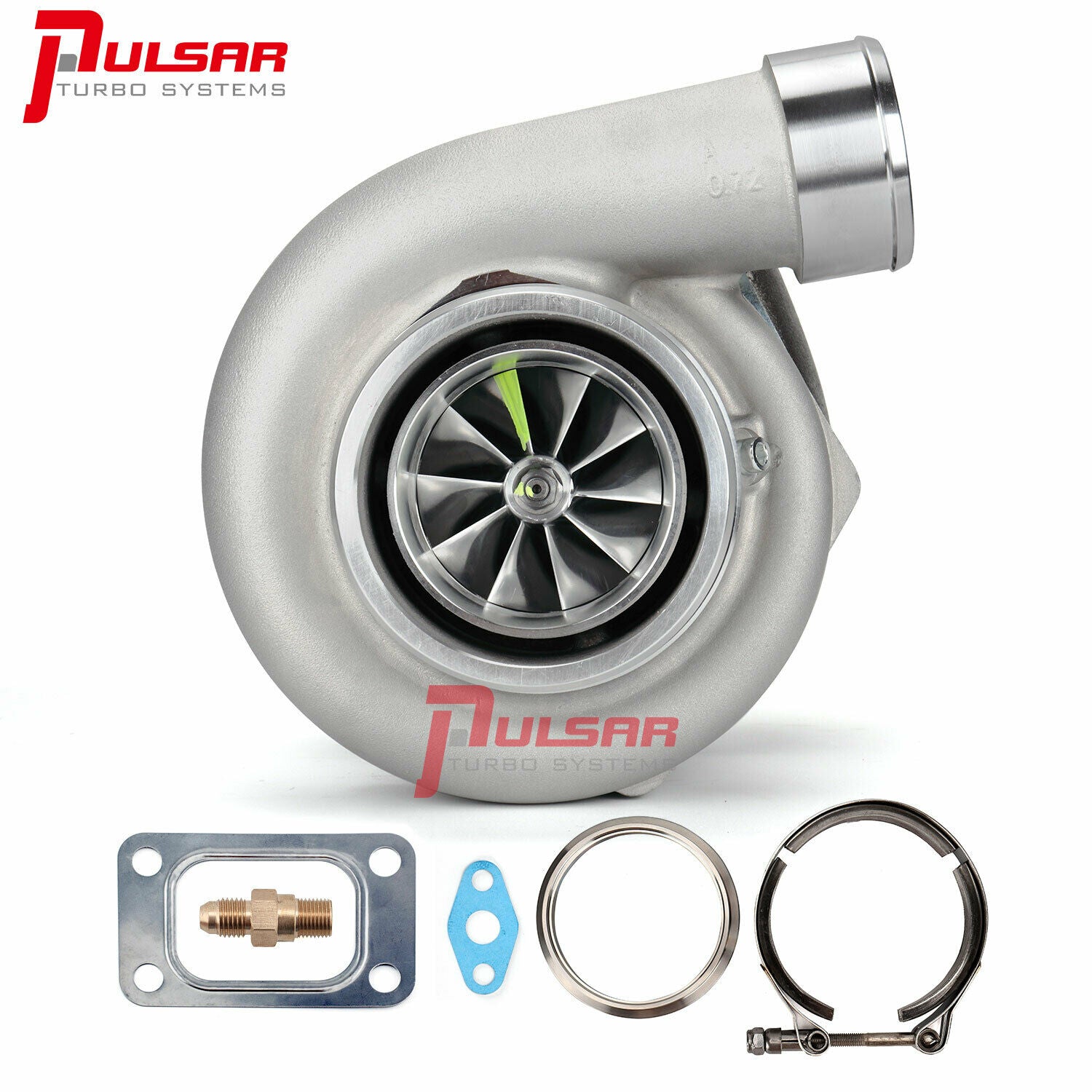

Pulsar PTX3584RS Gen 2

Pulsar PTX3584RS Gen 2

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.
• ‘Dual ceramic ball bearing system-
• 67*84mm Billet compressor wheel-
• 68*62mm “RS” Gen2 turbine wheel
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housings available
•  V-Band Flange kit(s) for the exhaust housing included
• Gen2 cover with integrated speed sensor port
• Compressor Housing: 4′ inlet, 2.5” outlet, 0.72A/R, Anti-surge
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c Gen2 9 Blade Turbine Wheel
• SPEC
• Billet Compressor Wheel: 67.3/84.4, 10+0 Blades;
  Compressor Housing: 4'' inlet, 2.5'' outlet, 0.72 A/R, Anti-surge;
  Turbine Wheel: 68/62.3mm; (“RS” blade profile)
  Turbine Housing: T3 inlet, V band outlet, 0.82 A/R;
  Turbine housing Outlet flange&clamp fit: 3'' OD tubing, slip on & weld.

It's strongly recommended to run water cooling to aid reliability.
