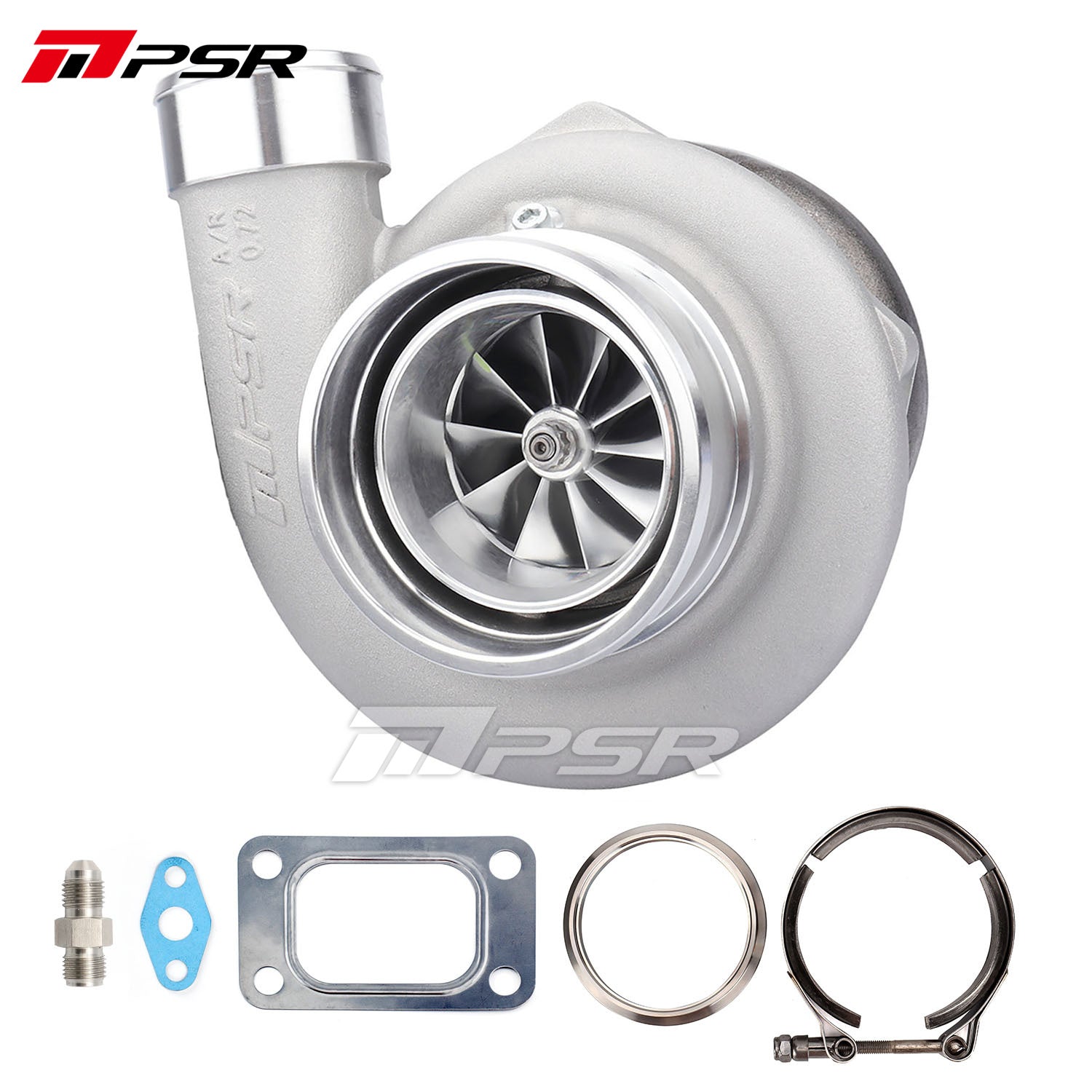

Pulsar GTX3584R Gen 3

Pulsar GTX3584R Gen 3

• Please note, T51R mod housings require an additional 7 days handling.
• Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible.
• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel for increased output
• Cover  with integrated  Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings available.
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
• Larger Turbine Wheel for Higher flow
• Approx 60 to 100 hp increase over Gen 2 version.

SPEC



• Compressor Wheel: 67*84mm
• Larger Turbine Wheel: 74*66mm
• Compressor Inlet: 4.0” Hose
• Compressor Outlet: 2.5” Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5



It's strongly recommended to run water cooling to aid reliability.
