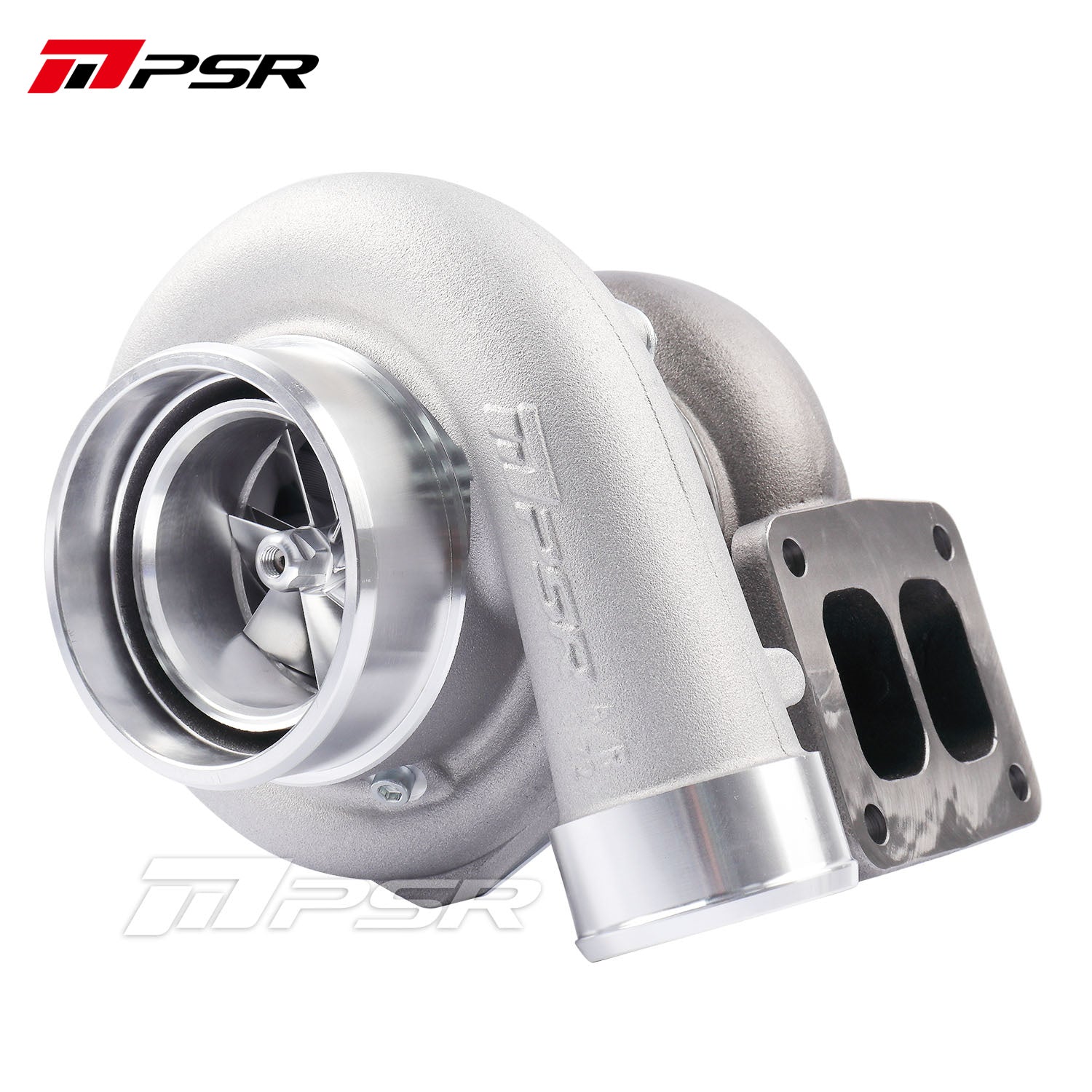

PTE6870 Ball Bearing Turbo

6870E



• Ball bearing system provides optimal turbo response & better durability by reducing shaft-motion
• Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• V-Band Flange kit for the exhaust housing included
• Max Engine Horsepower: 1100



SPEC



• Billet Compressor Wheel: 68/92.46mm,  7+7 Blade
• Turbine Wheel:Inconel 713 -  78.8 / 70.2mm, 10 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing shaft-motion)
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
• Turbine Housing: T4 Divided 1.0A/R, T4 open 0.81A/R(Coming Soon)
• The internal oil feed port is 0.9mm (Oil restrictor is not needed)
• Oil feed fitting: 1/8-27 NPSF
• Oil drain: T4 flange
