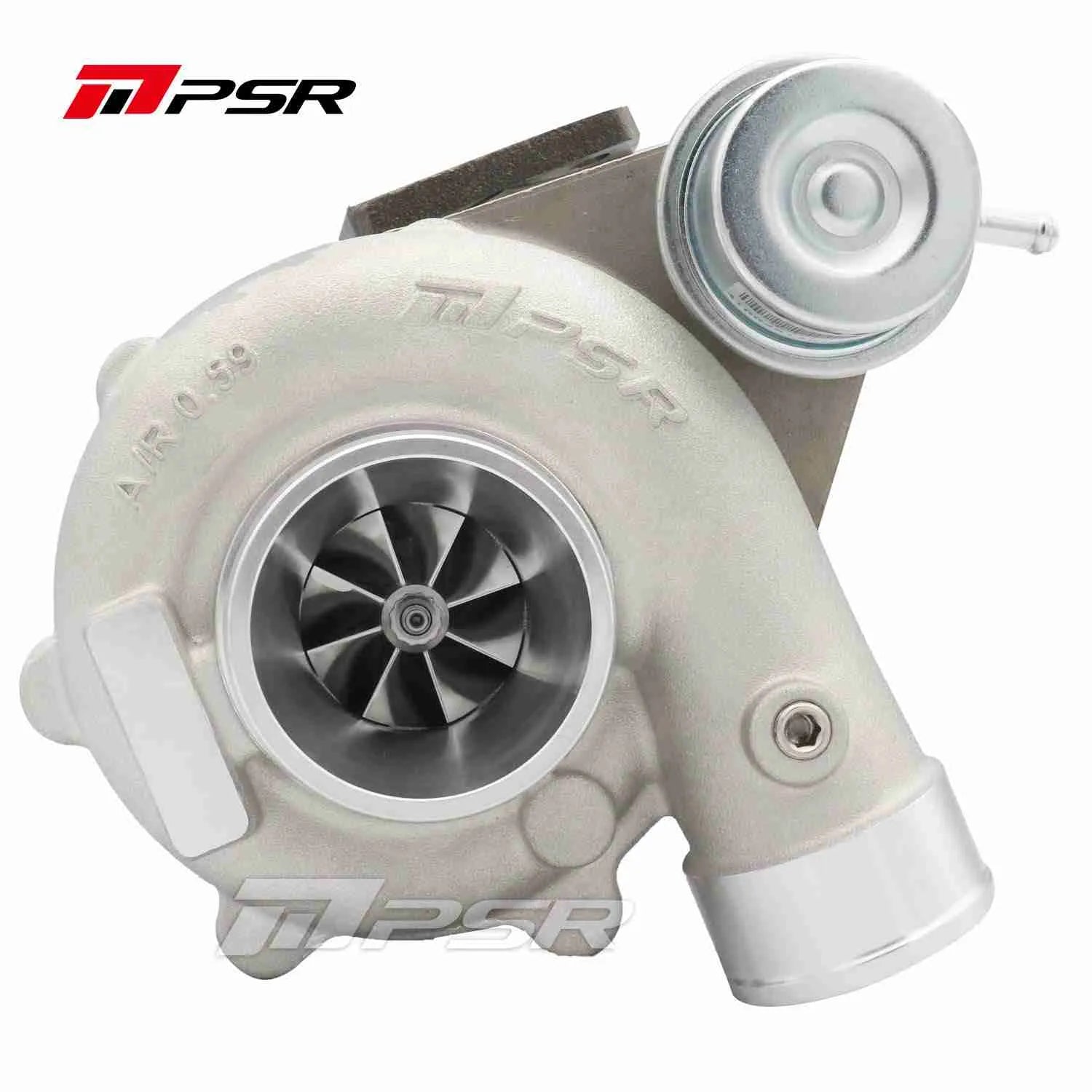

PSR3942G

PSR3942G Small capacity Turbo. 300HP Rating



• Meeting Requirements of the smallest engines
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft-motion
• Oil-cooled Center Housing
• Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
• 9 Blade 713c Turbine Wheel, 47*42mm
• 14 psi actuator spring
• Internal Wastegate Turbine Housing, 0.55A/R
• HP Rated at 300HP at the flywheel
• Suitable Engine Size: 0.8-2.0L

SPEC



• Bearing Systems: Dual Ceramic Ball Bearing
• Compressor Wheel: 39*52mm
• Turbine Wheel: 47*42mm
• Compressor Inlet: 60mm Hose
• Compressor Outlet: 50mm Hose
• Turbine Inlet: T25
• Turbine Outlet: 5 Bolt
• Oil Feed(excl’): M10 x 1
• Internal Wastegate Turbine Housing A/R: 0.55
