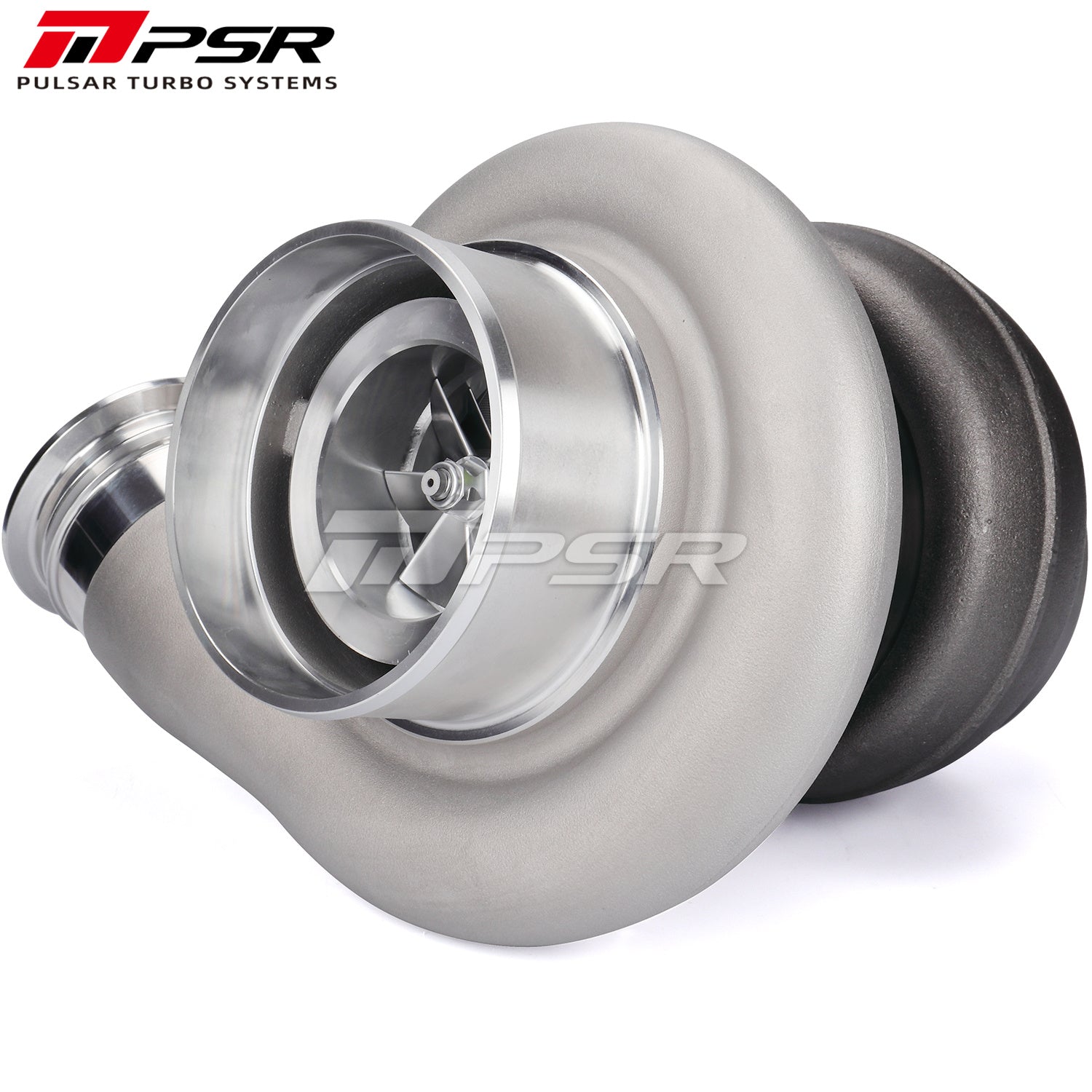

PSR 400D

• PSR400D
• CNC Machined Bearing Housing with cooling fins on CHRA
• Dual Ceramic Ball Bearing Systems
• 80mm, 85mm, 88mm, 92mm, and 98mm Compressor Wheel Options
• Billet Compressor Wheels with Extended Tip Technology
• 102/91mm and 109/99mm Turbine Wheel Options
• STD and T51R MOD in option for Compressor Cover with integrated Speed Sensor Port
• -12AN Oil Drain Flange and TRB. Inlet Gasket supplied
• Hot engine shut down is strictly prohibited
• 109/99mm Turbine requires 10 to12 days handling time!



Details

• Compressor Inlet: 5” Slip-Fit
• Compressor Outlet: Vband *
• Turbine Housing A/R: 1.32 and 1.58 in Options
• Turbine Housing Inlet: T6 Open and T6 Divided in Options
• Turbine Housing Outlet: 3/4 Marmon V-band *
• Oil Feed Port 1/4NPT
• Oil Drain Std T6 drain Flange
• Flange and clamp kits are available - please enquire for details.
