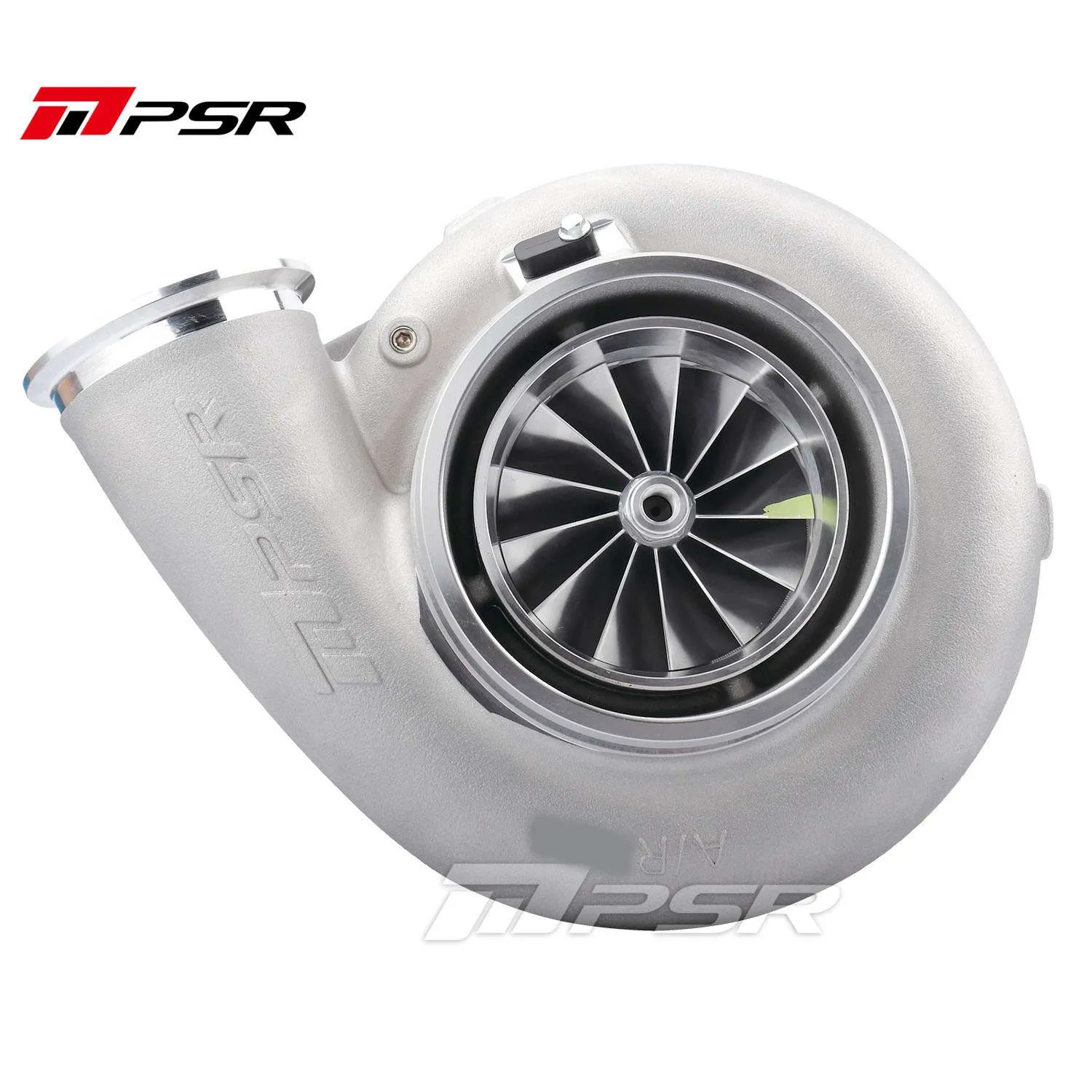

Pro 98 / G57 -2550

PSR Pro 98

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing shaft-motion
• 13 Blade G-Aero billet compressor wheel  98mm inducer produces up to 2550 hp
• 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover has integrated speed sensor port
• Outline interchangeable with GTX55 Gen II turbos

SPEC

• Compressor Wheel: 98.4*133.5*142.4mm
• Turbine Wheel: 118*112mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.96
• Turbine Inlet: 3.5” V-Band
• Turbine Outlet: 5” V-Band
• Turbine Housing A/R: 1.25
• Oil Feed: See additional images(OIL INLET) (an oil restrictor with ~1mm orifice is needed)
• Oil Drain: See additional images(OIL OUTLET)
