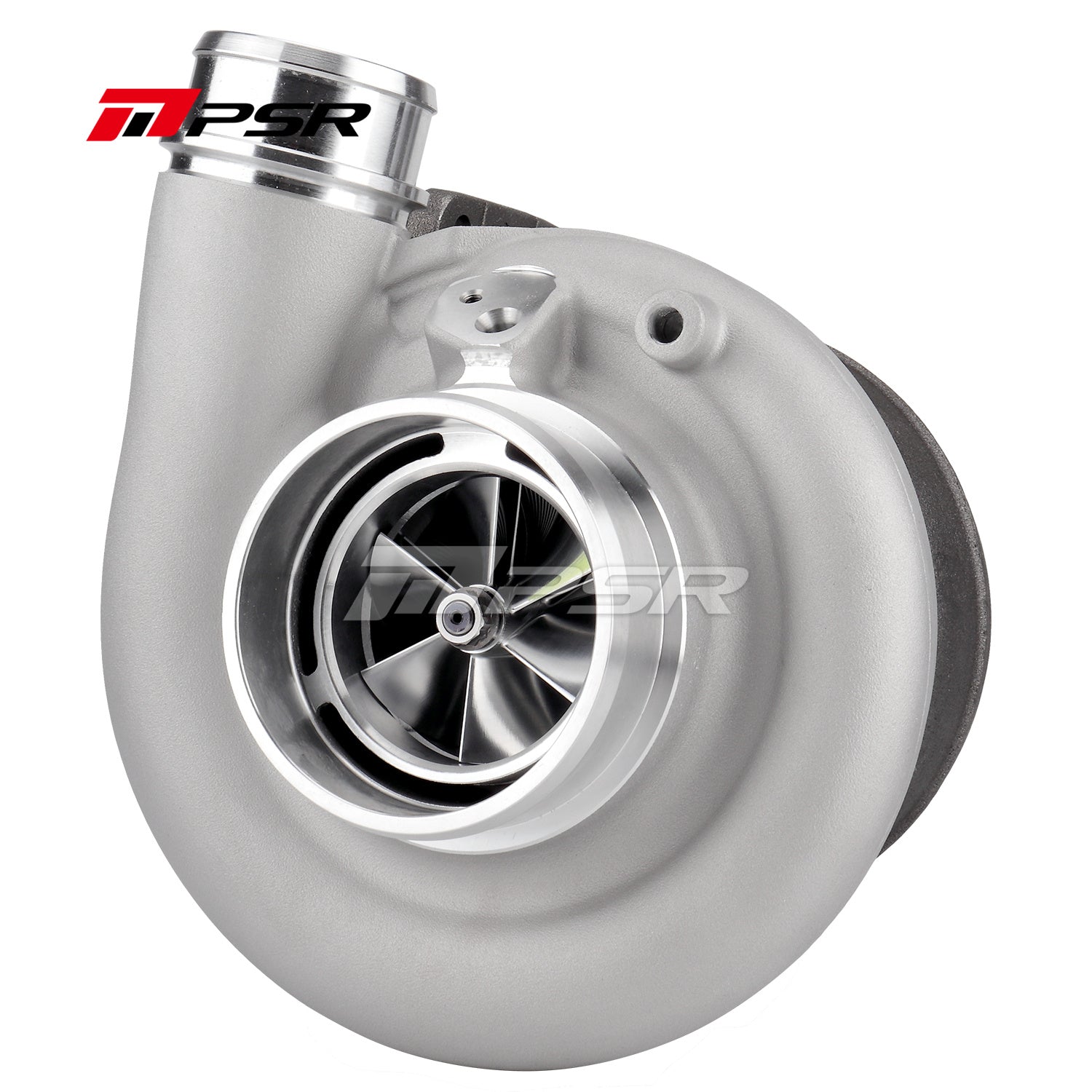

NEXT GEN Billet 363 366 369 372

• Dual Ceramic Ball Bearing Systems
• Billet Compressor Wheels with Extended Tapered Tip Technology
• Inconel 713c 80*73mm Turbine Wheel
• 4 Compressor wheel options available
• G2 compressor cover with ported-shroud inlet and integrated speed sensor port
• Units come with 0.91 T4 Divided Turbine housing
• Max Flow Rate: 100+ lb/min, rated @ 950FWHP



SPEC

• Bearing Systems: Dual Ceramic Ball Bearing
• Compressor Wheel: 363(63*87mm, 7+7), 366(66*91mm, 7+7), 369(69*94mm, 6+6), 372(72*96mm, 10+0)
• Turbine Wheel: 80*73mm
• Compressor Inlet: 4.0 Hose
• Compressor Outlet: 2.5 Hose
• Turbine Inlet: T4 Divided
• Turbine Outlet: 4.21″ Marmon
• Oil Feed: 1/4″ NPT
• Oil Drain: Std T4 Flange
