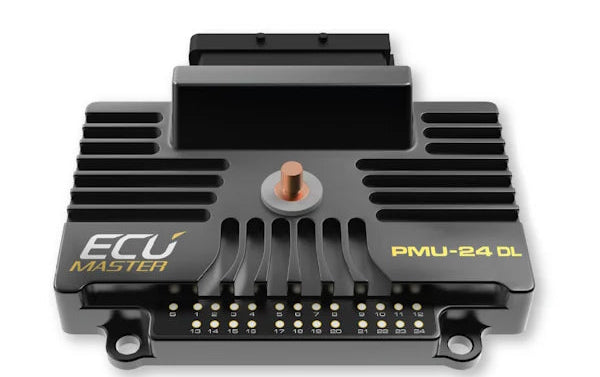

ECUMaster PMU-24 DL - Power Management Unit 24 Data Logging
ECUMaster PMU-24 DL - Power Management Unit 24 Data Logging
Regular price
£1,653.10 GBP
Regular price
Sale price
£1,653.10 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
PMU-24 DL is an new advanced Power Management Unit offering the advantages of PMU-16, plus additional high-side outputs and an integrated data logging memory.
GENERAL DATA |
|
| 170 Amps total continuous current. | |
| Operating voltage: 6-22V (immunity to transients according to ISO 7637) | |
| Temperature range: AECQ-100 GRADE 1, -40 to +125°C. | |
| 10x 25 Amps high-side power outputs (PWM capable). | |
| 6x 15 Amps high-side power outputs. | |
| 8x 7 Amps high-side power outputs. | |
| Up to 16 analog inputs. | |
| 24x tricolor LED for each power output state. | |
| 2x CAN 2.0 A/B. | |
| 256 MB data logger memory. | |
| Up to 500 Hz logging frequency. | |
| Real-time clock for data stamping. | |
| 3D accelerometer/gyroscope. | |

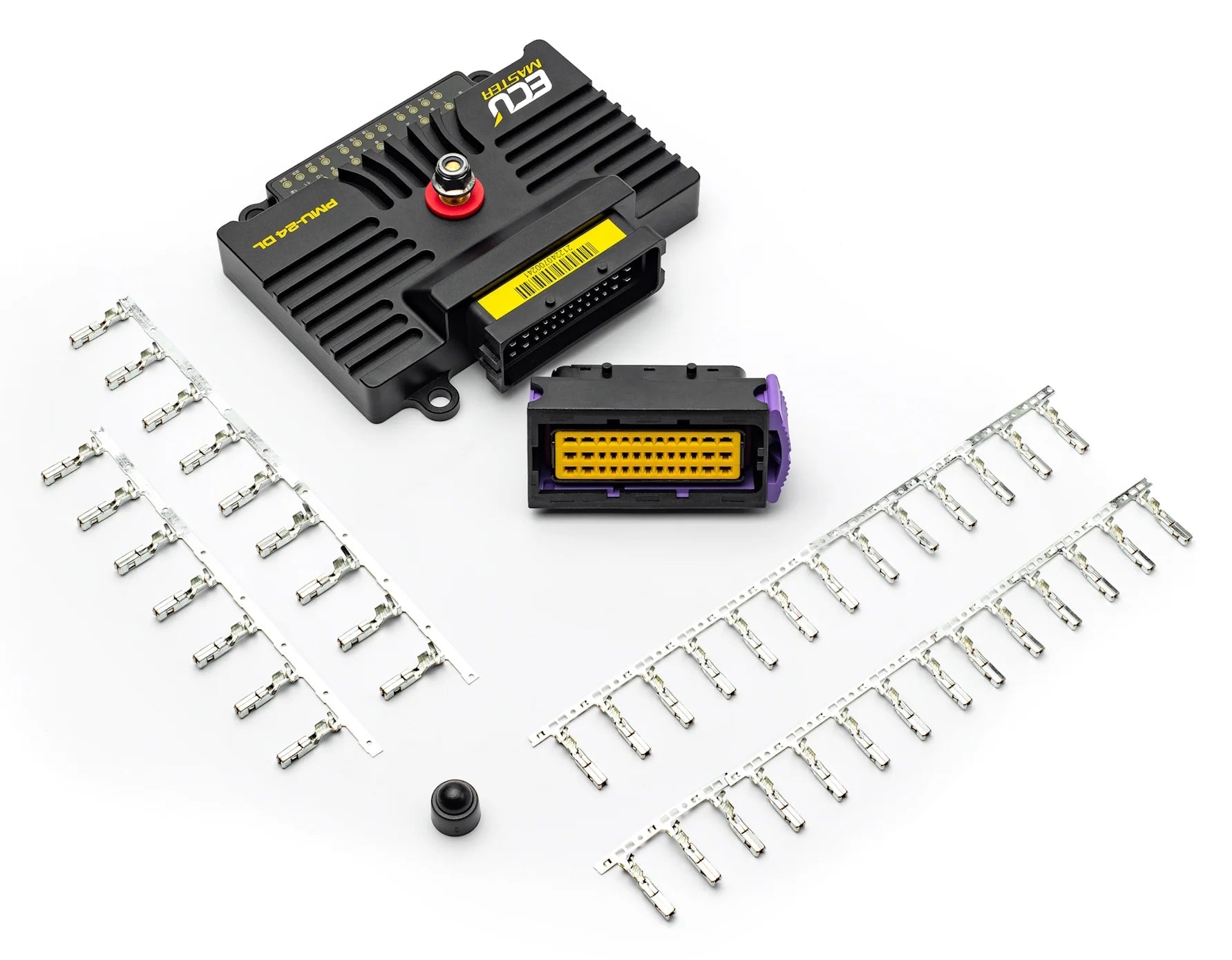

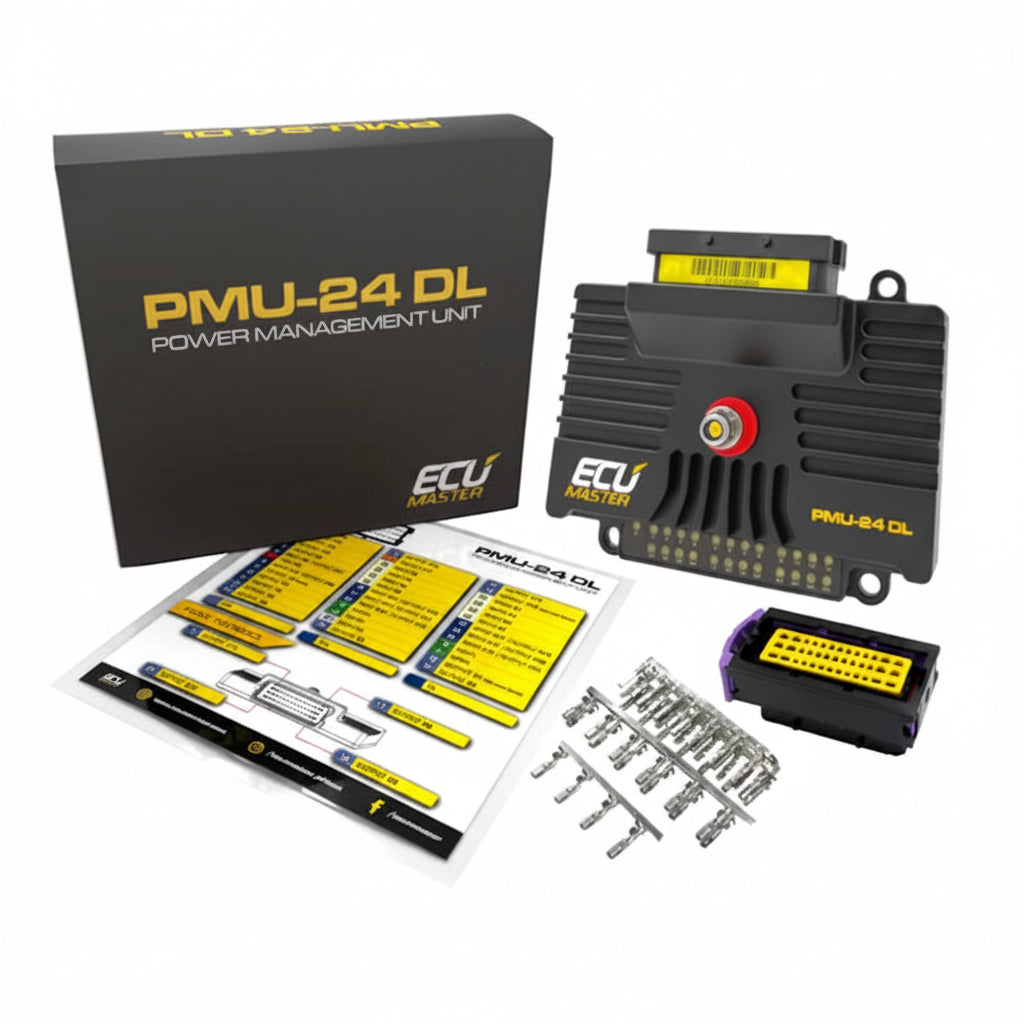

Mating connectors and terminals are included at no extra cost, which represents substantial savings and saves ordering separate or unnecessary components.
Please note for communication to the PMU a CAN interface is required. Peak-Systems, Kvazer or Ecumaster are supported.
Can2Usb unit can be found here
Pinout can be found here
PMU family comparison is available here
