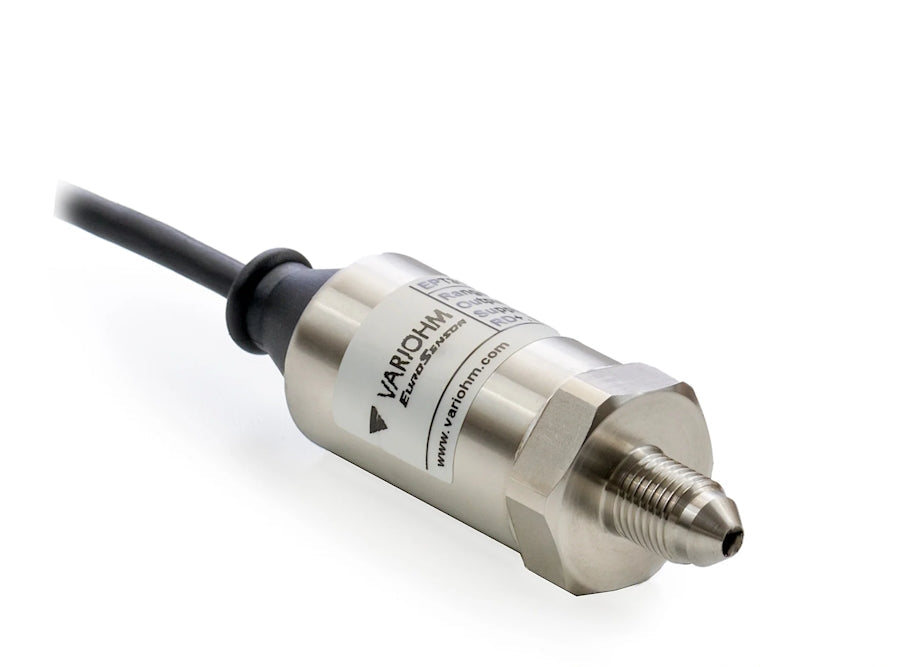

6 Bar Absolute Pressure Sensor

This sensor is perfect for all low pressure applications, including but not limited to crank pressure, coolant system pressure, gearbox oil pressure, and MAP sensing.

Its sturdy build and excellent reliability make it the top choice for automotive and motorsport needs.

Each sensor comes with a unique serial number, allowing us to track its sale, location, and specific application. With stainless steel internal components, this sensor is suitable for use with any type of medium.

Fitting:  -3 fitting (3/8 UNF) or optional 1/8npt

Connections

Red - 5vDC

Black - Sensor ground

White -signal

Calibration

0.5V-0Bar

4.5V-6Bar Absolute
